SQV This is an entertainment machinery and equipment and it is a children's educational game device. The equipment is composed of a stainless steel hollow ball, track and a plurality of mechanical transmission structures
customized Naughty castle Machinarium kids indoor playground equipment

customized Naughty castle Machinarium kids indoor playground equipment

Get Latest Price



Product Technical data:

Product name

Machinarium kids indoor playground equipment

Type

Indoor Playground

Material

Plastic Playground

Name

Coloful Playground Equipments

Size

6.6 square meters

Capacity

50-200 kids

Warranty

2 Years

Color

Colorful

OEM

Suppport

Aged for

2-15 years old

Apply to

Amusement Park Kindergarten Pre-school

Usage

Kids Indoor Play

Trading Information:

Payment Term: T/T, Western Union, Credit card

Original: China

Shipping: Sea, Air
• Transparent and fair price   • Online tracking

customized Naughty castle Machinarium kids indoor playground equipment
PRODUCT DESCRIPTION
customized Naughty castle Machinarium kids indoor playground equipment

Project Introduction:

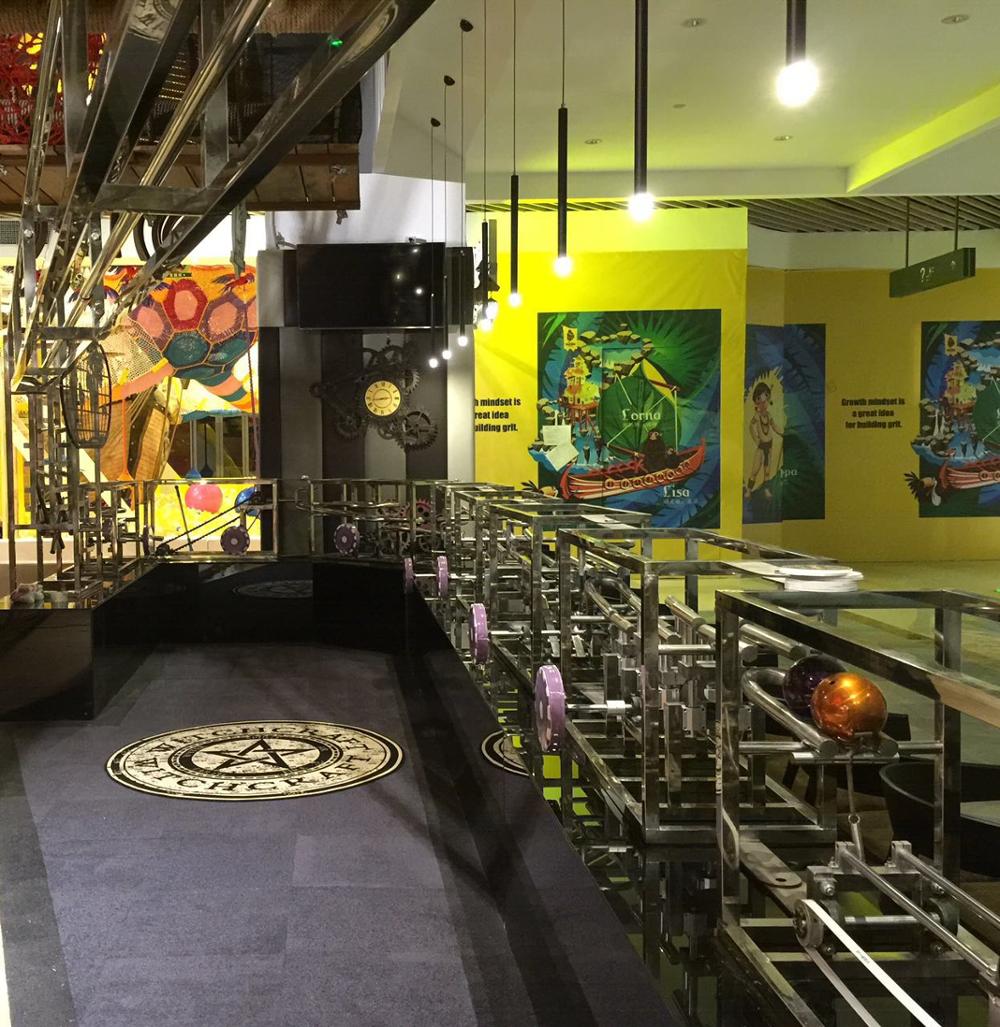

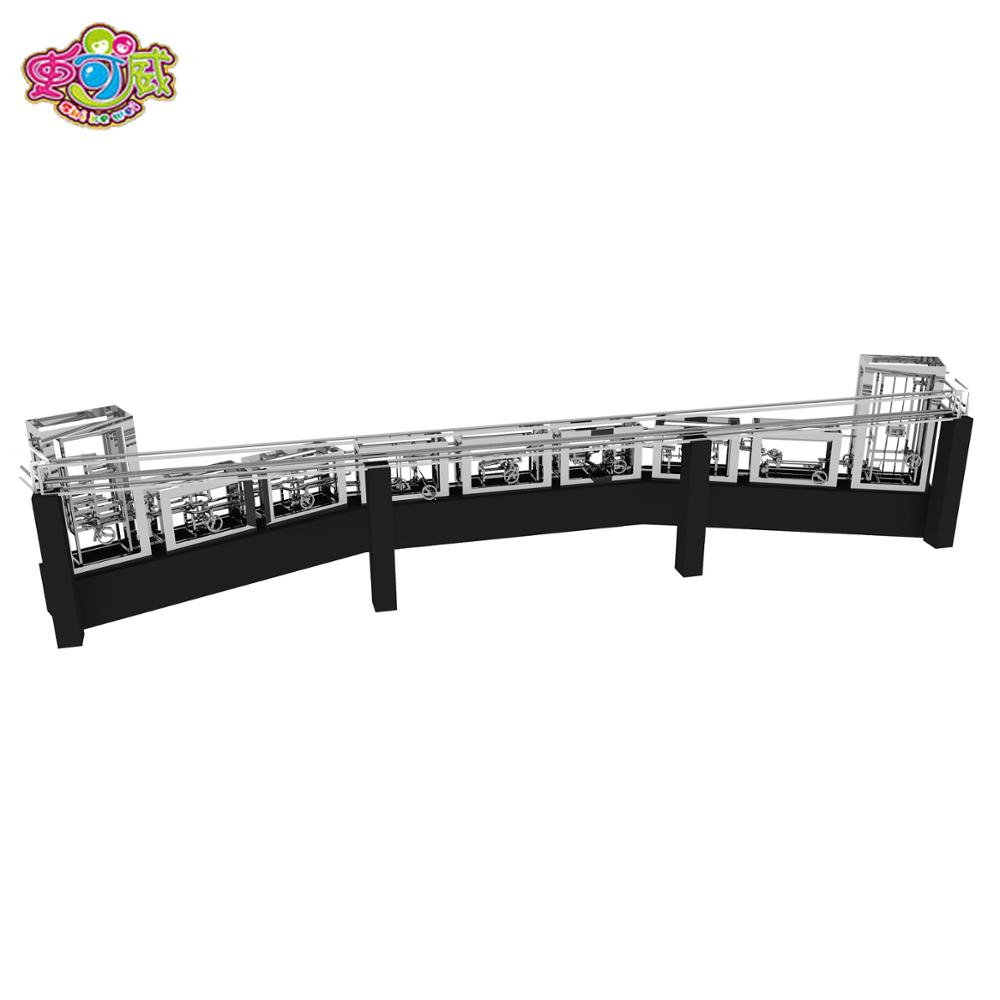

This project is an entertainment machinery and equipment and it is a children's educational game device. The equipment is composed of a stainless steel hollow ball, track and a plurality of mechanical transmission structures. The ball enters the device from the starting point. When passing through each transmission mechanism along the track, an artificial operation is performed to allow the ball to pass smoothly into the next mechanism

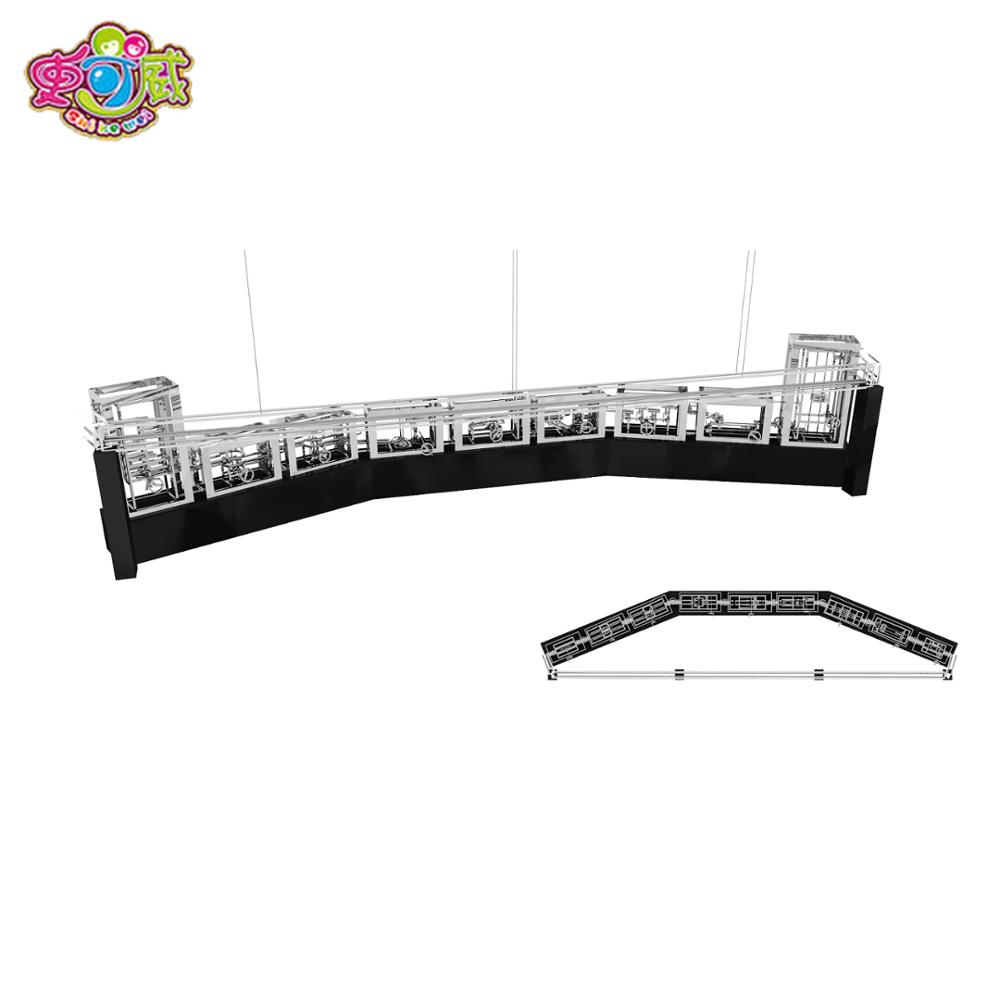

The tracks are connected together to form a ring and can be operated in a continuous cycle.

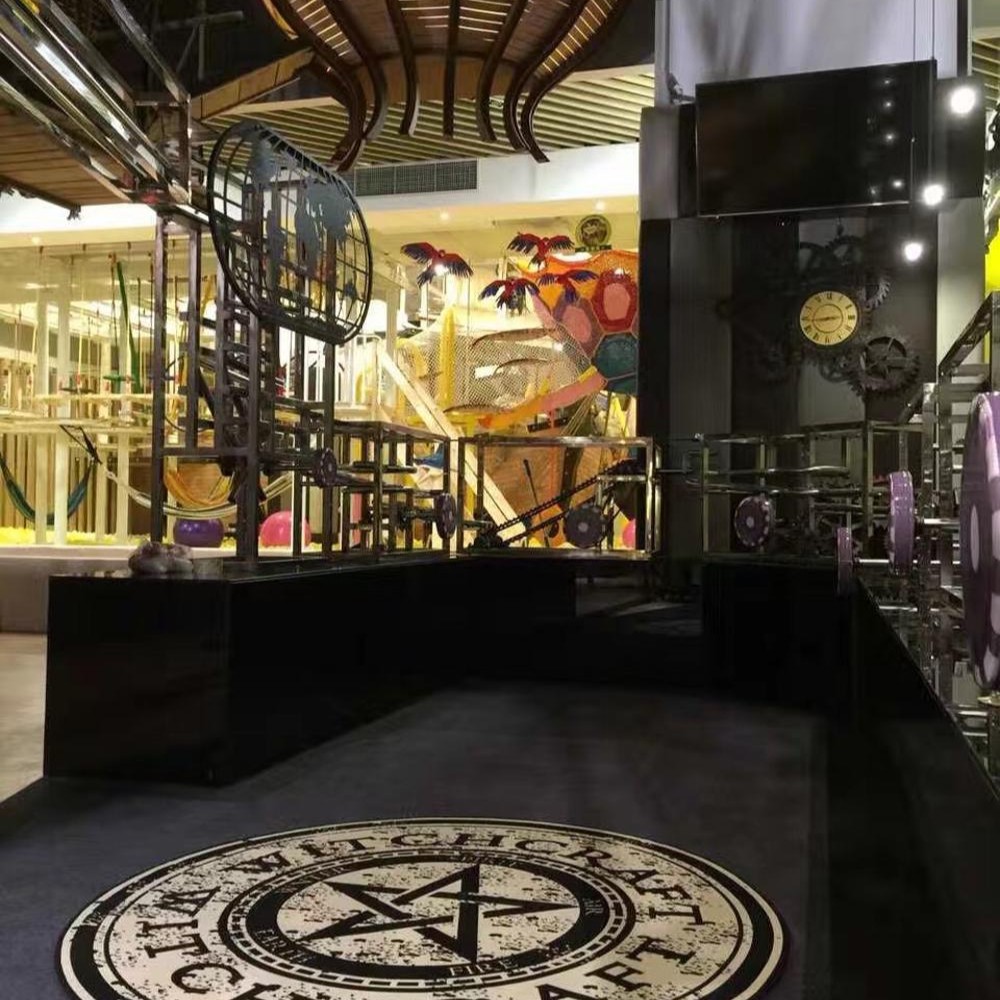

The device is used as a children's playground toy. Children can enjoy fun by playing ball games in person. At the same time, they can increase their knowledge and enjoyment. They can also work together in teams and each person is responsible for a part of the team to complete tasks and improve teamwork awareness.

customized Naughty castle Machinarium kids indoor playground equipment
customized Naughty castle Machinarium kids indoor playground equipment

And Machinarium can be designed into Carton pattern.


customized Naughty castle Machinarium kids indoor playground equipment
customized Naughty castle Machinarium kids indoor playground equipment

Machinarium kids indoor playground equipment Development ideas and content:

1.The size and shape of the module:  According to the actual survey results, the dimensions are tentatively defined as 100*40*60cm (length, width, height) cuboids, both discrete and horizontal. The ball diameter is about 10cm. All modules are designed according to the dimensions. all the modules completed in the design are determined to be more suitable and more economical.

2.According to the cost control requirements, the structural frame is welded by angle steel and channel steel (3030). The fixed installation of the transmission mechanism and the track adopts standard structural steel as far as possible to avoid customized machining parts, and all transmission components such as gears, sprockets, pulleys, bearings, etc.  preferred to adopt standard parts.

3. Requirements of the internal mechanism of the module: The rolling ball is rotated by gravity, before the ball enter the next transmission mechanism, the rolling ball should be able to automatically roll along the track and stay in front of the entrance of the mechanism until manually operating the transmission mechanism. The track can refer to the equipment of the science museum.

4.Universal interface design: Design a male and female mating connector that can rotate at a certain angle. The ball needs to roll forward automatically, so there are two ways to design the entrance and exit of the module. The first kind of entrance and exit height is the same, the track at the entrance is set to a certain down-dip angle to the entrance of the mechanism, the mechanism lifts the height of the ball in addition to the transmission, and the exit of the mechanism sets another exit of the connection module of the downward inclination track. In the second scheme, there is a height difference between the entrance and the exit. After the ball enters from the entrance of the module, the ball is rolled by gravity to the entrance of the mechanism. After the transmission mechanism is driven, another inclined track is connected to the exit of the module. In order to make each module available, In terms of interchangeability, the second scheme requires that the overall structure from the inlet to the outlet of the module be set to be adjustable in height. Design should use two kinds of schemes in combination, if the transmission mechanism can raise height then use the first kind of interface, otherwise adopt the second kind.

customized Naughty castle Machinarium kids indoor playground equipment
customized Naughty castle Machinarium kids indoor playground equipment


customized Naughty castle Machinarium kids indoor playground equipment
